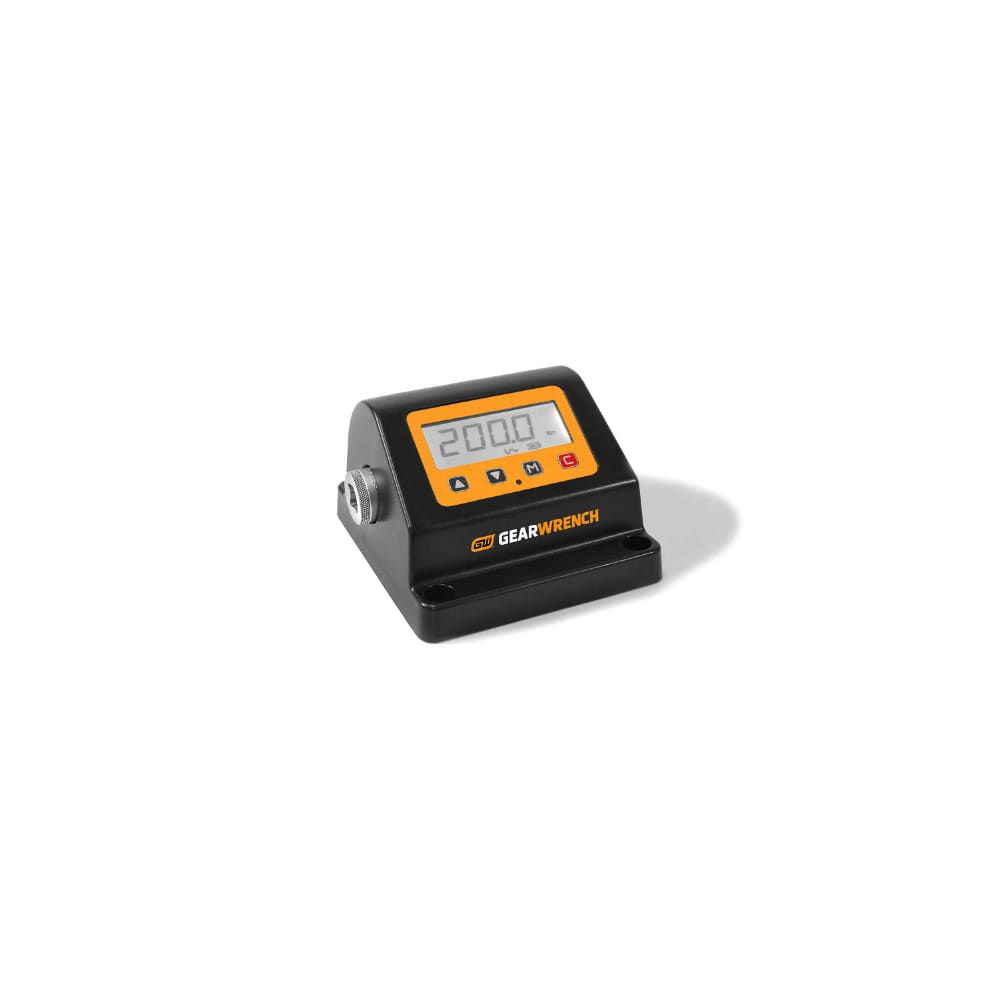

Description
FEATURES:
• Designed for inspection of torque wrenches in a production workshop
• Percentage error between the measured value and the set value, no more manual calculation needed
• Accuracy of +/- 1%
• 4 Torque measurement units provide a readout in ft/lb, in/lb, Nm, and Kg/cm
• Includes 3 modes track, peak, and first
• Data can be uploaded via a USB interface
• Backlit for ease of use in dark working conditions
• Runs on either a full-time AC connection or with the built-in Li-ion battery
• 10 minute auto shutdown extends battery life
• Can be fixed onto workbench or base plate with 4 screw bolts
SPECIFICATIONS:
• ASME Specification: Meets or Exceeds
• Drive Tang Size: 1/2 in
• Drive Type: Square
• Finish: Painted
• Material: Steel
• Max Torque (Alt Scale): 135.6 Nm
• Max Torque (Primary Scale): 100 ft/lb
• Min Torque (Alt Scale): 13.6 Nm
• Min Torque (Primary Scale): 10 ft/lb
• Torque Accuracy (20-100% of Full Range): +/-1% Clockwise
• Warranty: 90 Day Calibration/1 Year Parts
Bench testers are ideal for point-of-use. Can be mounted on a bench or stand. Compact durable design with a backlit screen. Rechargeable battery included.
• Designed for inspection of torque wrenches in a production workshop
• Percentage error between the measured value and the set value, no more manual calculation needed
• Accuracy of +/- 1%
• 4 Torque measurement units provide a readout in ft/lb, in/lb, Nm, and Kg/cm
• Includes 3 modes track, peak, and first
• Data can be uploaded via a USB interface
• Backlit for ease of use in dark working conditions
• Runs on either a full-time AC connection or with the built-in Li-ion battery
• 10 minute auto shutdown extends battery life
• Can be fixed onto workbench or base plate with 4 screw bolts
SPECIFICATIONS:
• ASME Specification: Meets or Exceeds
• Drive Tang Size: 1/2 in
• Drive Type: Square
• Finish: Painted
• Material: Steel
• Max Torque (Alt Scale): 135.6 Nm
• Max Torque (Primary Scale): 100 ft/lb
• Min Torque (Alt Scale): 13.6 Nm
• Min Torque (Primary Scale): 10 ft/lb
• Torque Accuracy (20-100% of Full Range): +/-1% Clockwise
• Warranty: 90 Day Calibration/1 Year Parts
Bench testers are ideal for point-of-use. Can be mounted on a bench or stand. Compact durable design with a backlit screen. Rechargeable battery included.
