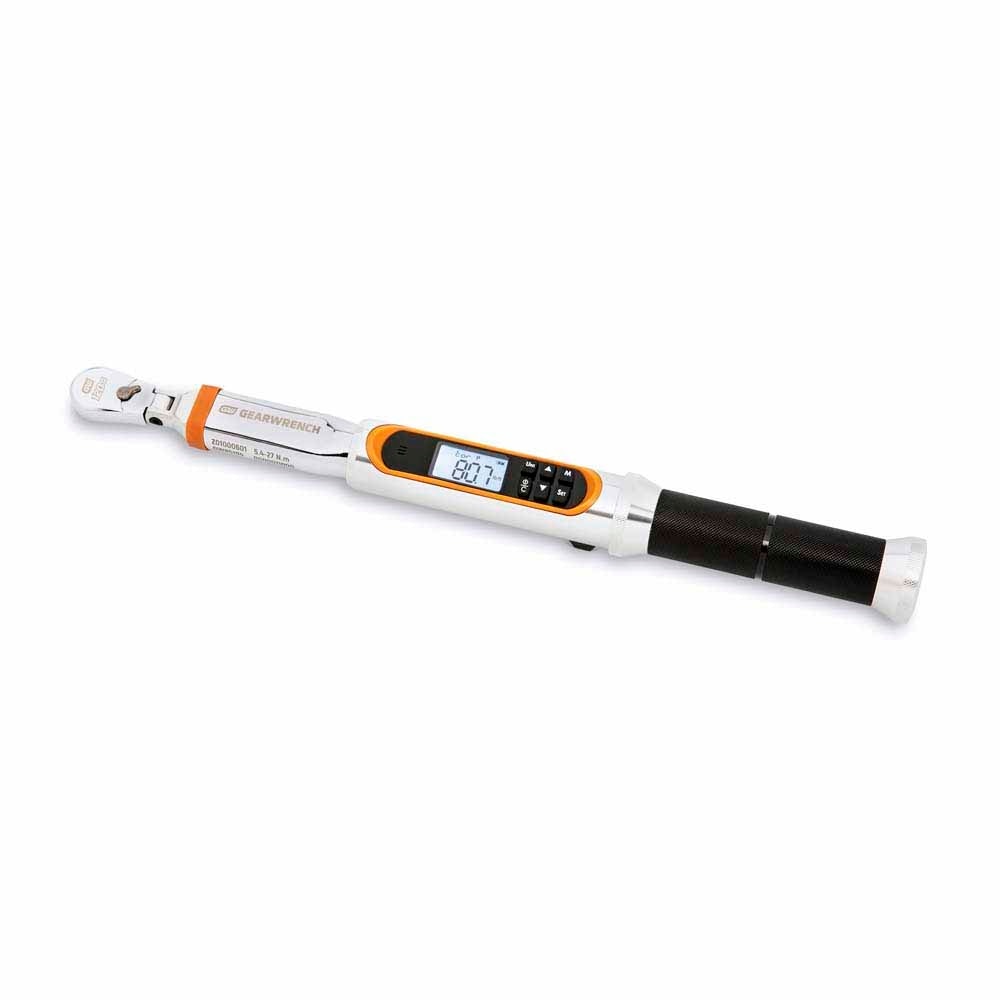

GearWrench 85194 1/4" 120XP Flex Head Electronic Torque Wrench with Angle


Price:
Sale price$226.50 Regular price$469.96

Description

FEATURES:

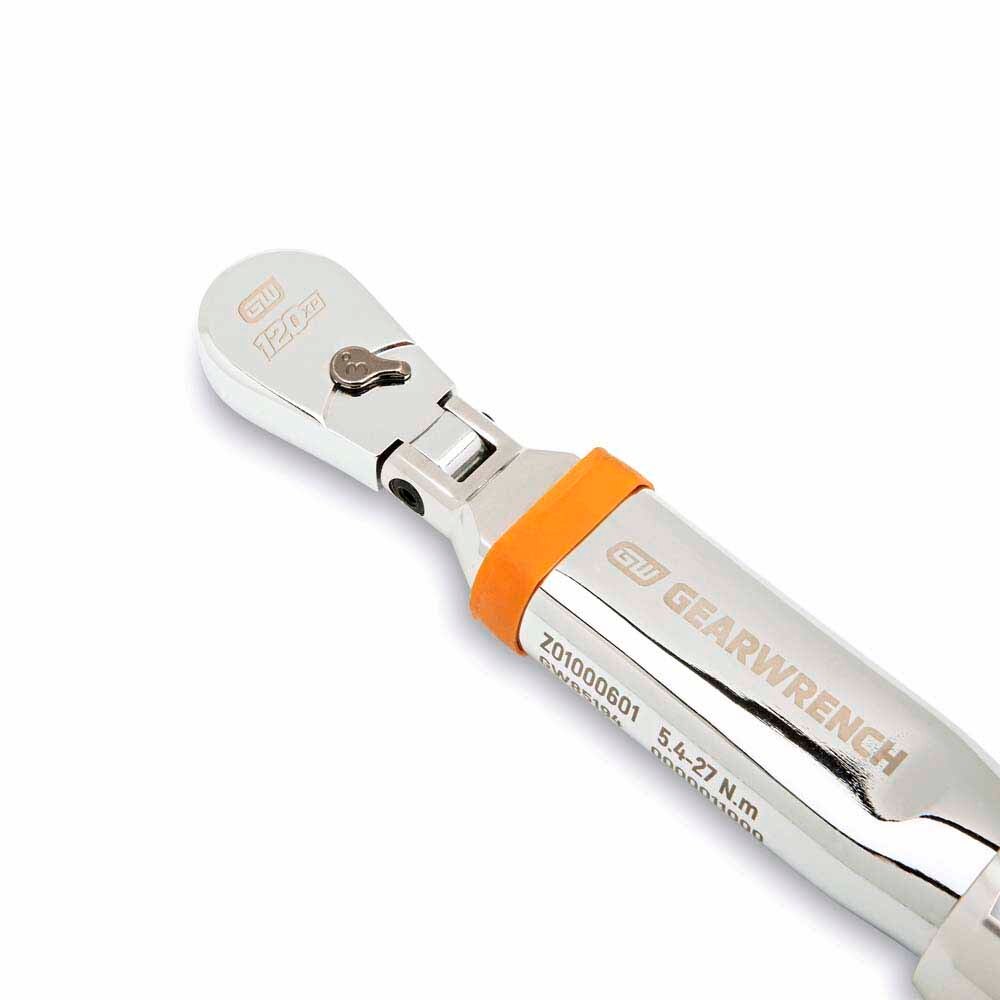

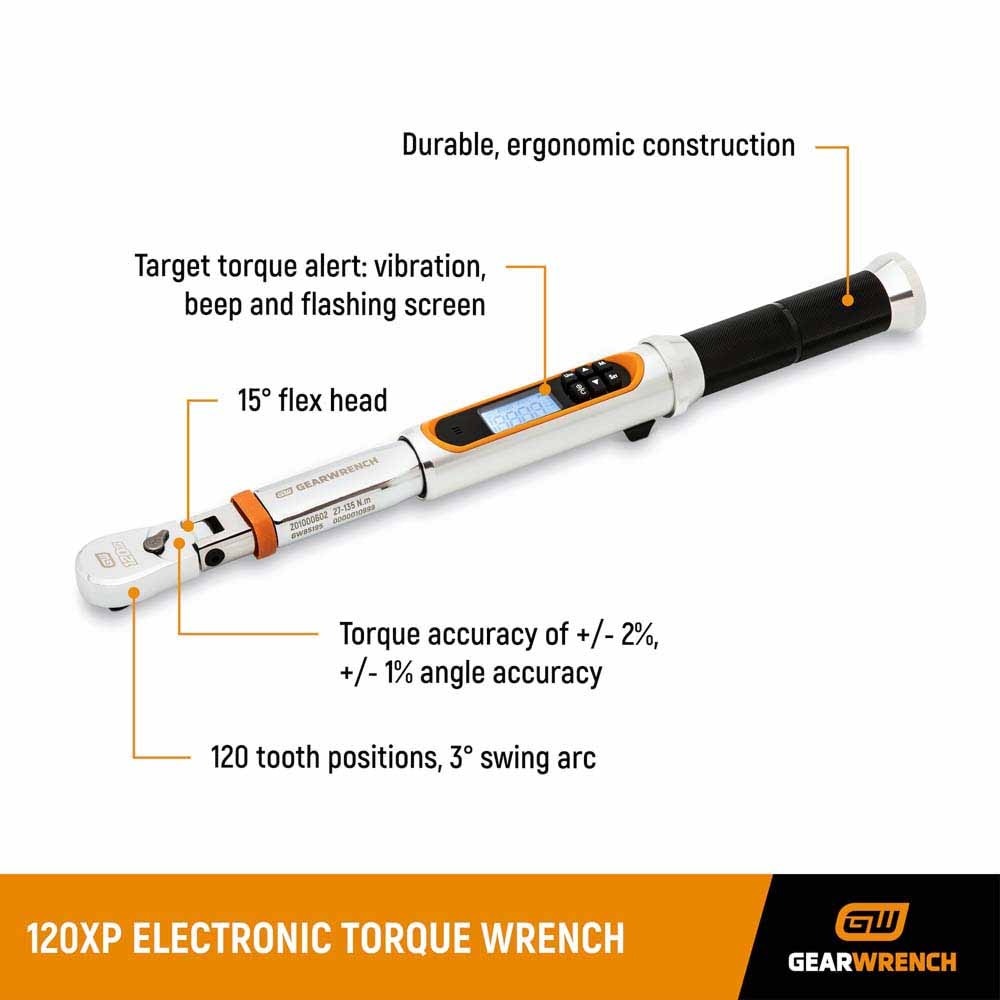

• 120XP head provides a 3° ratcheting arc to turn fasteners in narrow spaces
• 2-20 Ft/Lbs primary scale min-max with 0.1 Ft/Lbs increments
• 2.7-27 Nm secondary scale min-max with 0.1 Nm increments
• Low profile tube, 15° flex teardrop head, and flush mounted on/off switch allow for better access in tight confines

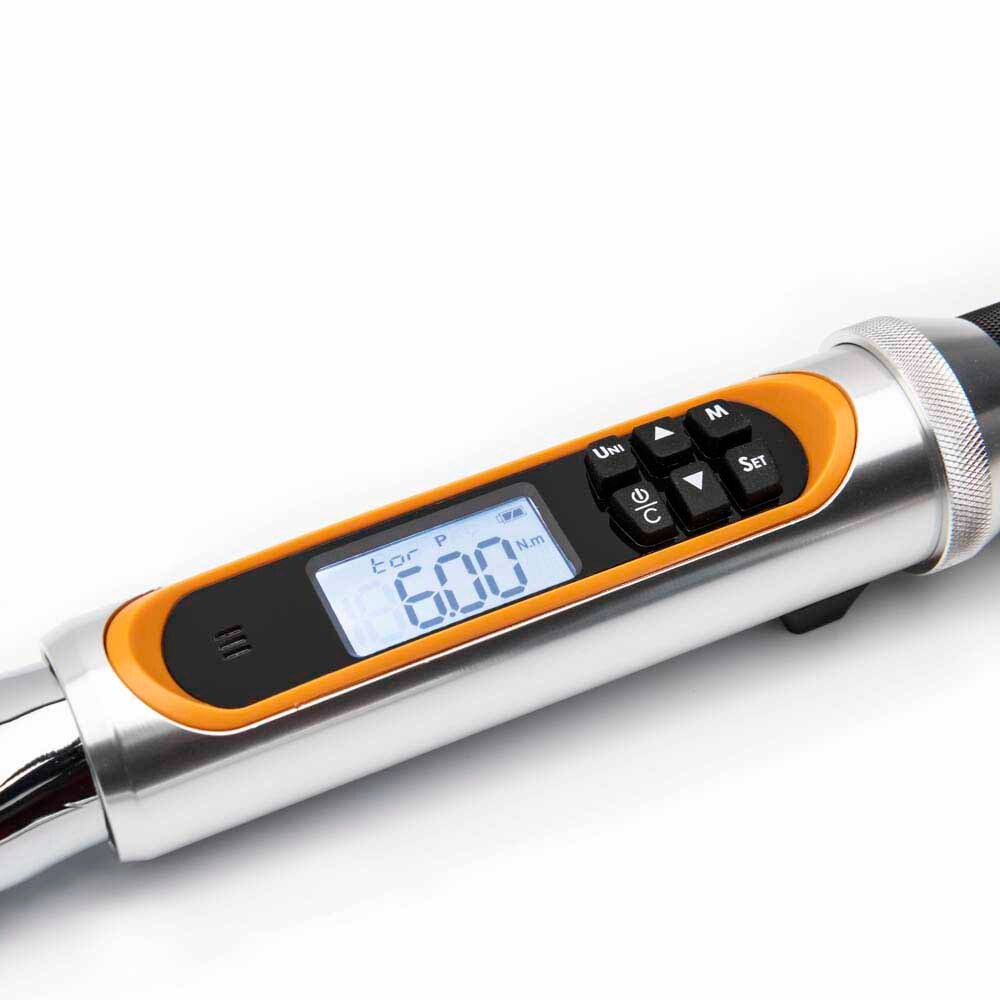

• Digitally tracks torque and angle measurements with vibrating handle, buzzer, and LCD screen alert when target torque is reached
• 3 Function modes feature peak torque, angle, and peak angle for additional versatility
• 5 Torque measurement units provide a readout in ft-lb, in-lb, Nm, Kg-m, and Kg-cm
• 10 Available preset torque settings allow you to quickly access frequently repeated applications
• Torque accuracy of +/-2% CW and +/-3% CCW between 20% and 100% of wrench capability angle settings offer +/-1% of reading of angle accuracy
• Knurled aluminum handle lets you grip comfortably, while clearly marked midpoint promotes additional accuracy
• Meets or exceeds ASME standards and specifications
• 1 Year limited warranty; calibration accuracy warrantied for 90 days

SPECIFICATIONS:
• Alt Scale Increments: 0.1 Nm
• ASME Specification: B107.10 B107.12 B107.28 B107.300
• Batteries Included: No
• Battery Type: AA
• Case Color: Black & Molten Orange
• Drive Tang Size: 1/4 in
• Drive Type: Square
• Finish: Full Polish Chrome
• Head Length: 1.5 in
• Head Thickness: 0.4 in
• Head Thickness Less Tang: 0.25 in
• Head Width: 1.01 in

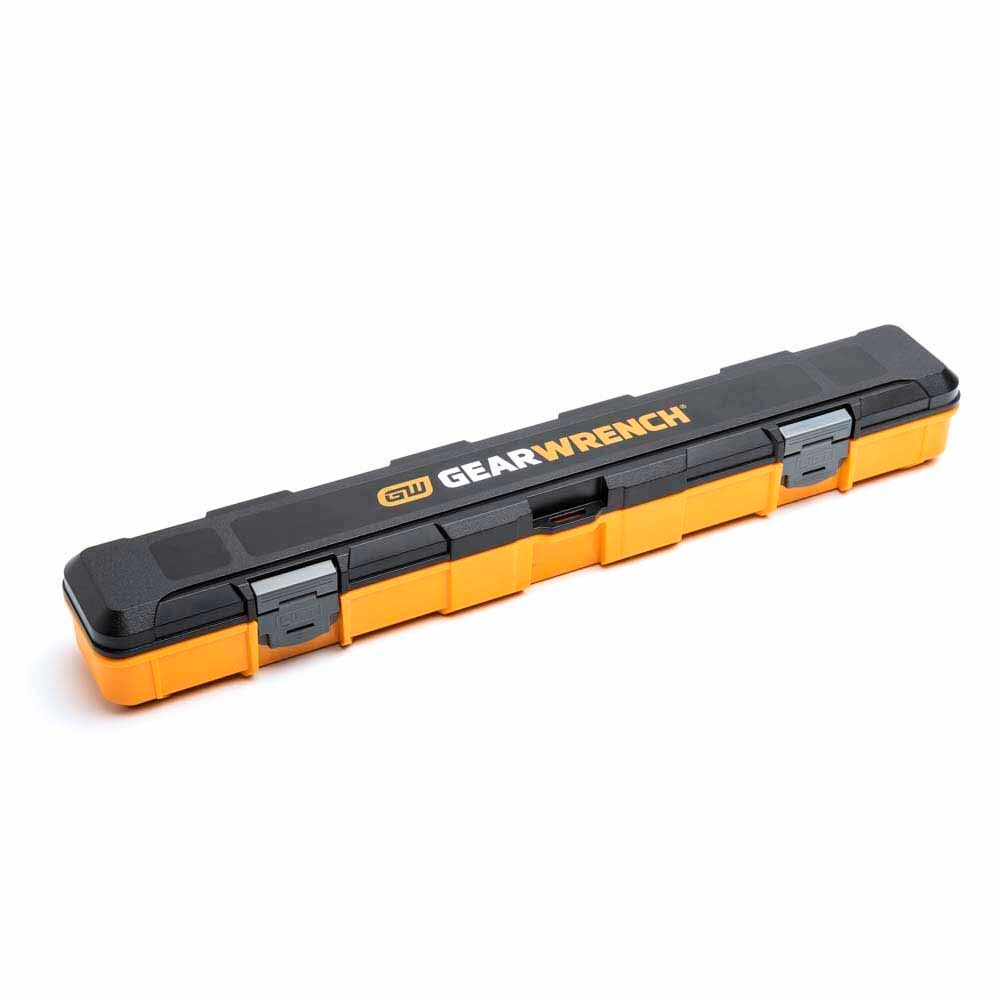

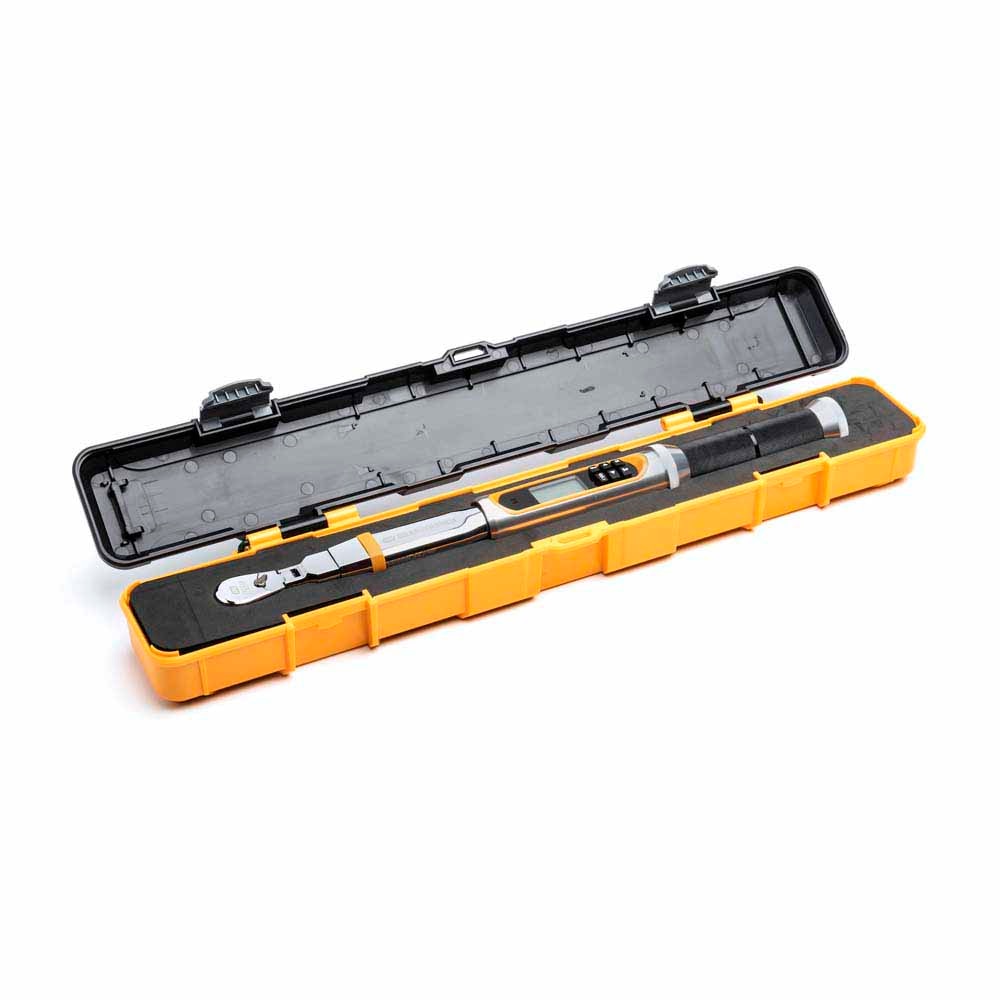

• Included Storage: Injection Molded Case with Removable Lid and EVA Foam Insert
• Material: Alloy Steel
• Max Torque (Alt Scale): 27 Nm
• Max Torque (Primary Scale): 20 ft/lb
• Min Torque (Alt Scale): 2.7 Nm
• Min Torque (Primary Scale): 2 ft/lb
• Number of Batteries: 2
• Primary Scale Increments: 0.1 ft/lb


The GEARWRENCH family of torque wrenches and torque products offer the latest innovations in torque measurement. Included in the line are micrometer, tire shop, beam and electronic torque wrenches, as well as, torque multipliers. The micrometer wrenches are available in fixed head and flex head. The fixed head line offers wrenches in 1/4 In. to 3/4 In. drives. The flex head wrenches are available in 3/8 In. and 1/2 In. drives. The tire shop wrenches feature a rugged tire tread rubber cover on the head intended to specifically be used for checking wheel lug nuts and are available in 3/8 In. and 1/2 In. drives. The electronic torque wrenches ensure a more precise fastener torque level and are available in a 3/8 In. and 1/2 In. drives. The GEARWRENCH line of torque products allow the user to complete any job where accurate torque is required.
