Description

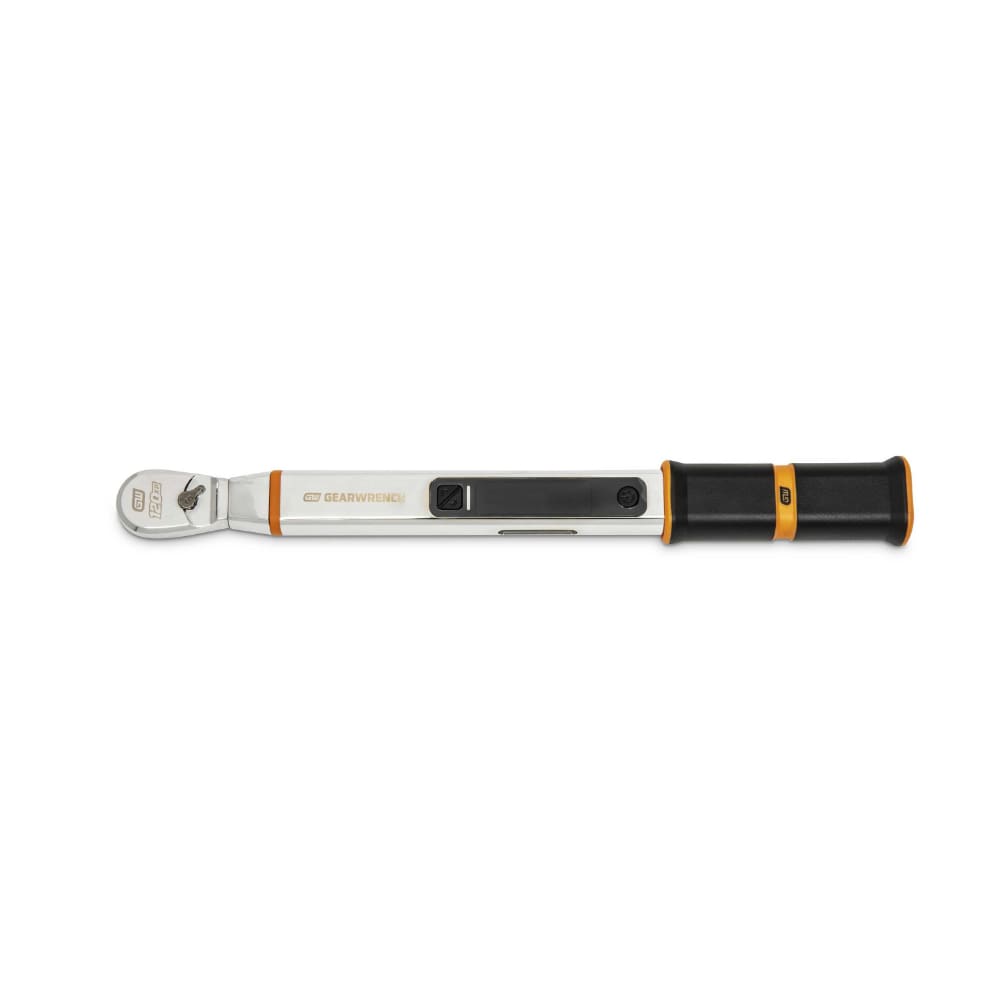

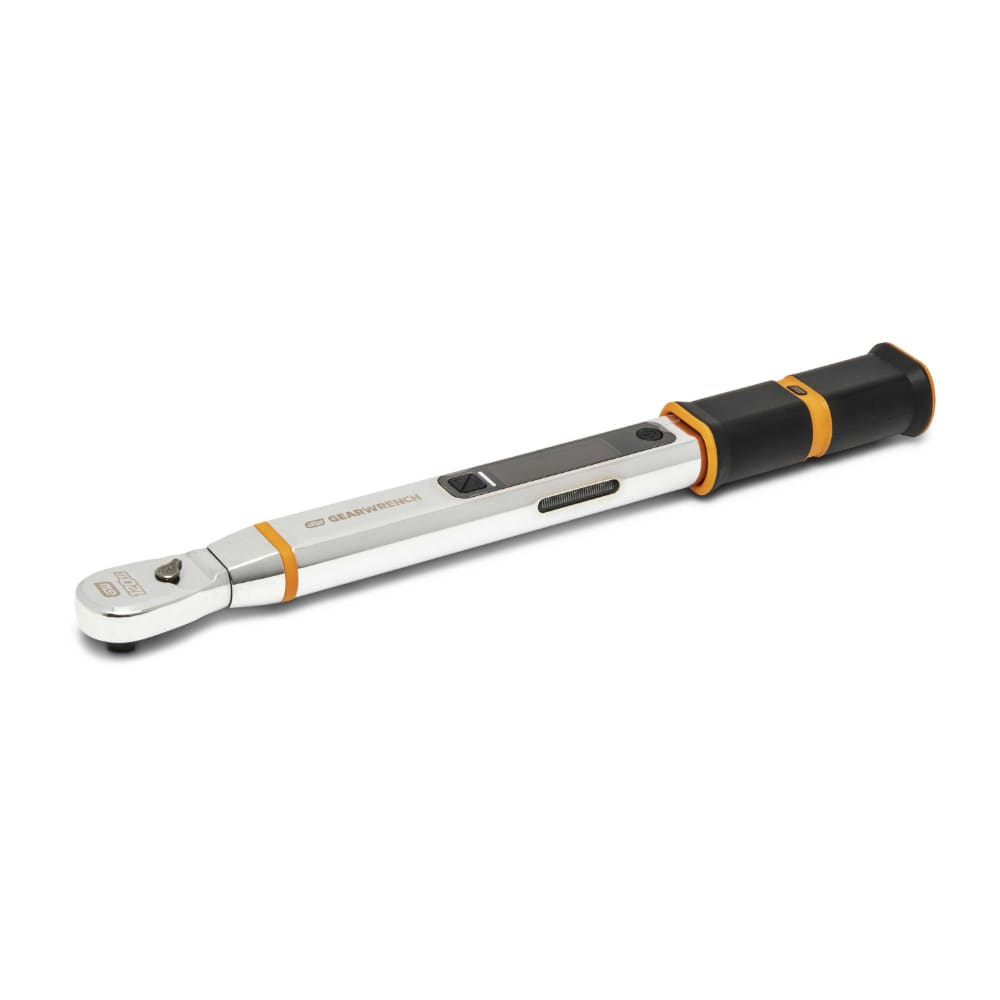

GearWrench 85236-01 Description

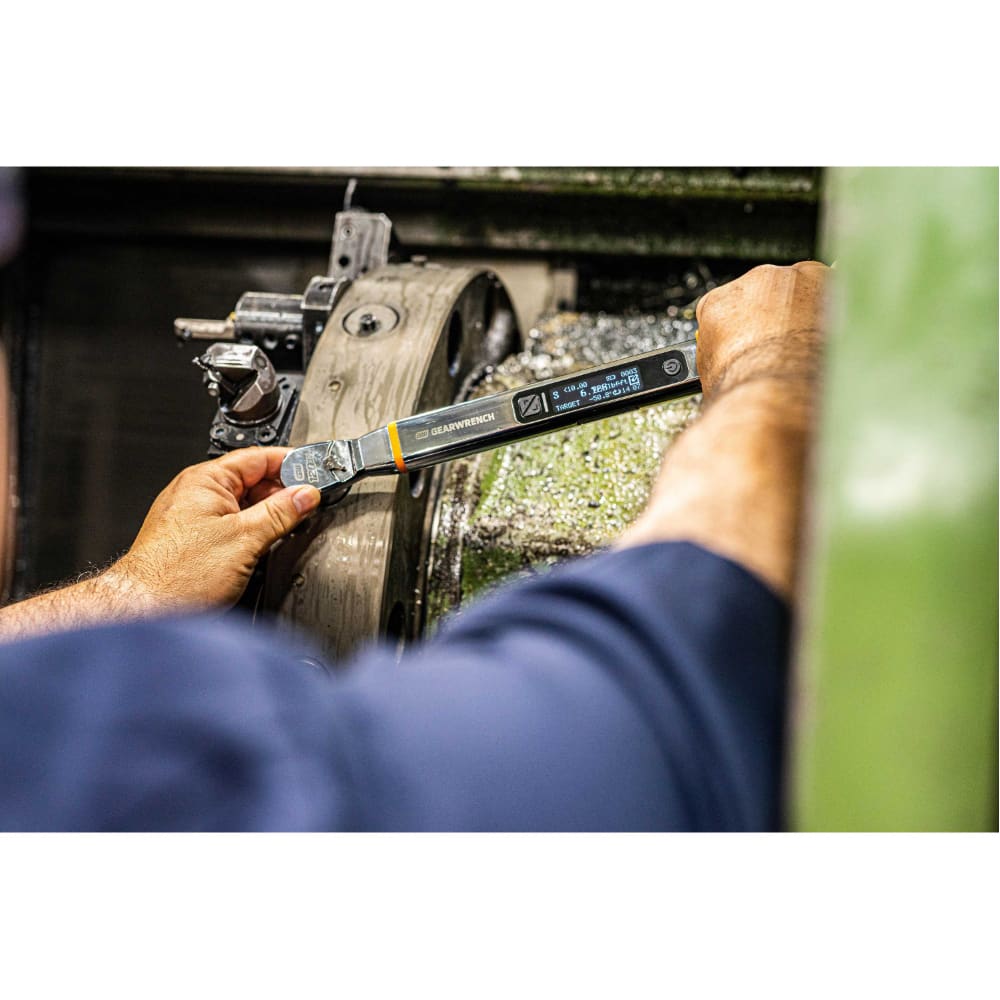

E-Spec is a connected electronic torque wrench designed specifically for production environments where a high level of precision is required. With+/- 1.5% torque accuracy and +/- 1% angle accuracy, E-Spec is a high-tech workhorse. E-Spec software allows users to set torque parameters and download torque process data via standard text format and all E-Spec wrenches incorporate GEARWRENCH 120XP technology that can turn fasteners in just a 3° swing arc. E-Spec is the new standard for premium industrial torque applications.
GearWrench 85236-01 Features
- Wrench only no accessories
- 120XP head provides a 3° ratcheting arc to turn fasteners in narrow spaces
- Low profile flex head design allow for better access in tight confines
- Torque accuracy of +/-1.5% CW and +/-2.5% CCW angle settings offer +/-1% of reading of angle accuracy
- 3 Torque measurement units provide a readout in ft-lb, in-lb and Nm
- Simple 2 button menu with reversible screen for right or left handed use
- 100 Available preset torque settings allow you to quickly access frequently repeated applications
- 100,000 Life cycle accuracy
- Meets or exceeds ASME standards and specifications
- 1 Year limited warranty; calibration accuracy warrantied for 90 days
GearWrench 85236-01 Specifications
| Alt Scale Increments | 0.1 ft/lb |
| ASME Specification | B107.300 |
| Batteries Included | No |
| Drive Tang Size | 3/8 in |
| Drive Type | Square |
| Finish | Full Polish Chrome |
| Head Thickness | 1.05 in |
| Head Width | 1.26 in |
| Included Storage | None |
| Material | Alloy Steel |
| Max Torque (Alt Scale) | 20 ft/lb |
| Max Torque (Primary Scale) | 28 Nm |
| Min Torque (Alt Scale) | 1 ft/lb |
| Min Torque (Primary Scale) | 1.4 Nm |
| Primary Scale Increments | 0.1 Nm |
| Repair Kit | 81227P |
| Tether Ready | No |
| Tooth Count | 120 |
| Torque Accuracy (20-100% of Full Range) | +/- 1.5% Clockwise |
| Torque Range In. Lbs. | 12 - 240 in/lb |
