Description

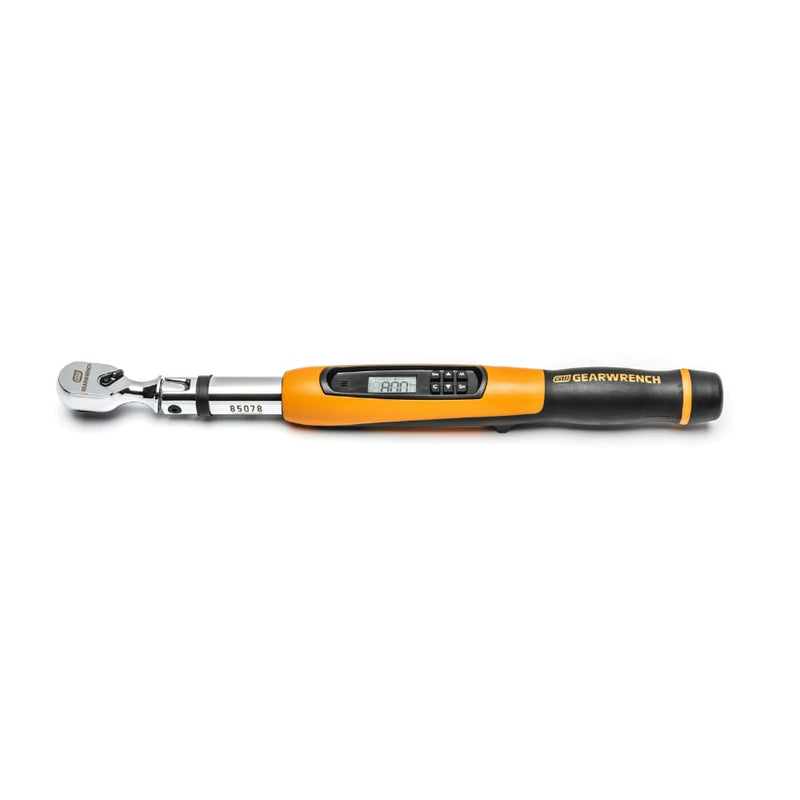

GearWrench 85078 Features
- “Target torque alert” gives a warning as you approach the target torque; vibrating handle, buzzer, and solid LED light indicate when target is reached
- 72-Tooth ratchet mechanism with a 5° swing arc allows you to turn fasteners in tight spaces
- Handle and housing are oil and solvent resistant, protecting the tool from harmful agents and keeping your hands in place
- 5 Torque measurement units provide a readout in Nm, ft-lb, in-lb, Kgf-m, and Kgf-cm
- Torque accuracy of +/-2% CW and +/-3% CCW between 20% and 100% of wrench capability
- Requires 2 AA batteries (not included)
- Meets or exceeds ASME B107.28M standards and specifications
- 1 Year limited warranty; calibration accuracy warrantied for 90 days
- Meets or exceeds ASME B107.28M standards and specifications
- 1 year limited warranty; calibration accuracy warrantied for 90 days
GearWrench 85078 Specifications
Alt Scale Increments | 0.1 Nm |
ASME Specification | B107.10 B107.12 B107.28 B107.300 |
Batteries Included | No |
Battery Type | AA |
Case Color | Black & Molten Orange |
Drive Tang Size | 3/8 in |
Drive Type | Square |
Finish | Full Polish Chrome |
Head Length | 2.12 in |
Head Thickness | 0.7 in |
Head Thickness Less Tang | 0.55 in |
Head Width | 1.25 in |
Included Storage | Blow Mold Case |
Material | Alloy Steel |
Max Torque (Alt Scale) | 135 Nm |
Max Torque (Primary Scale) | 100 ft/lb |
Min Torque (Alt Scale) | 13.5 Nm |
Min Torque (Primary Scale) | 10 ft/lb |
Number of Batteries | 2 |

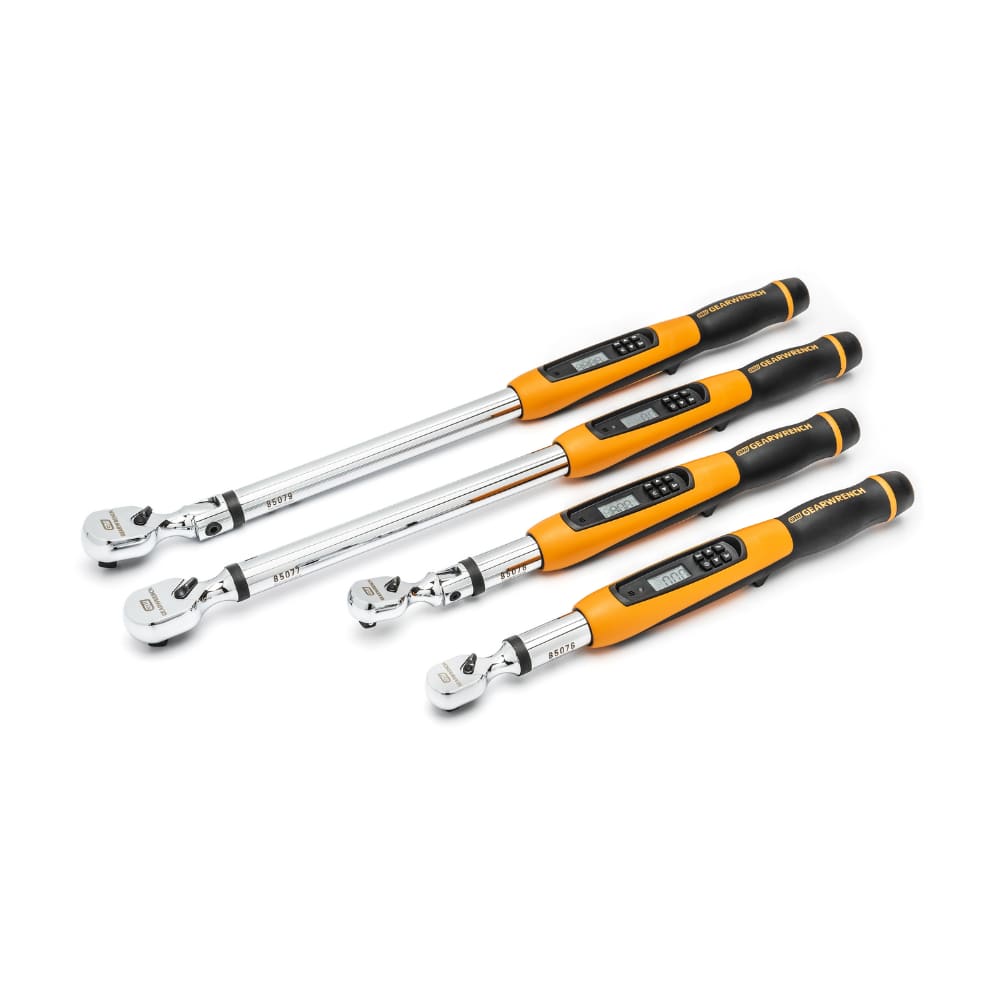

Primary Scale Increments | 0.1 ft/lbThe GEARWRENCH family of torque wrenches and torque products offer the latest innovations in torque measurement. Included in the line are micrometer, tire shop, beam, electronic torque wrenches, as well as, torque multipliers. The micrometer wrenches are available in fixed head and flex head. The fixed head line offers wrenches in 1/4 to 3/4 In. drives. The flex head wrenches are available in 3/8 and 1/2 In. drives. The tire shop wrenches feature a rugged tire tread rubber cover on the head intended to specifically be used for checking wheel lug nuts and are available in 3/8 and 1/2 In. drives. The electronic torque wrenches ensure a more precise fastener torque level and are available in a 3/8 and 1/2 drive. The GEARWRENCH line of torque products allows the user to complete any job where accurate torque is required. |
